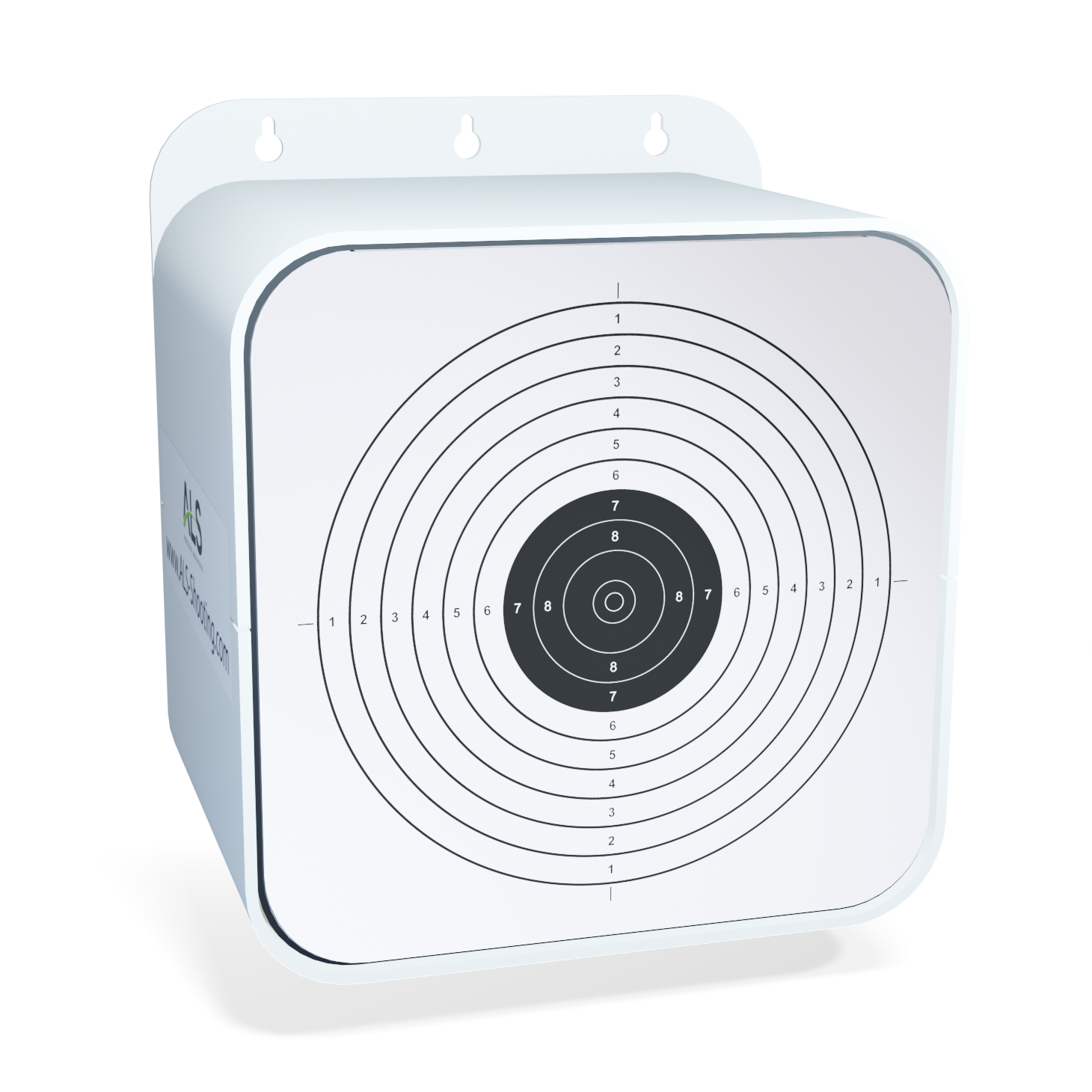

The SmartPLT
Our Flagship Product.
We have designed the SmartPLT Precision Laser Target to fit perfectly to everybodies demands: athletes, trainers, event organizators and hobbyists. The SmartPLT is not dependent on any external computer at all. All the processing and
result calculation is completely done inside the SmartPLT itself. And this with an unbelievable speed and highest precision!
Please feel free to contact us with any questions regarding the product. We are improving our product
constantly and encourace every kind of your suggestions.
Explore the SmartPLT
No Computer Required
The SmartPLT can be used as a Hit & Miss Target AND even as a precision target without the need for a computer system. The result calculation is done by a revolutionary processing system directly in the target
itself.
If you want to make precision shooting without any external computer/smartphone, checkout our ShotLight Timing. It shows you your timing and shotvalue directly.
Incredible Strong Software
The target comes with free and easy to use software (SmartPLT Live Edition One), compatible with every computer running Microsoft Windows (minimum Windows 7). With our software you can use your target and collect your specific
results and timing. If you need more powerful software, like for managing your own events or collect data from more than one athlete and you need strong analyzing capabilities, you can use the software SmartPLT LIVE Edition
Competition.
SD-Card Slot
Sometimes you just want to shoot on a target without having a connection to a network or with a PC, so to say: “out of the box”, “in the woods” or any “field of play”. With the SmartPLT you can! The Smart PLT has a SD-Card slot.
If you insert a SD-Card the target, it automatically collects and saves all results on the card. Later you can read out all your shooting series with a PC and analyze or archive your results and timings.
100% UIPM COMPLIANT
The SmartPLT is compatible to the UIPM LaserCode standard of 2015 as well as the UIPM requirements for Class A Events. This was proven and testified in the UIPM Homologation process in december of 2015. Hence the SmartPLT can be
used in all official and unofficial events!
ShotFreeze Technology
Thanks to the built in ShotFreeze technology, the target has a very high performance on snatched shots which leads to repeatable results, even of “in motion” fired shots. The ShotFreeze technology is an own built architectural
approach to minimize the influence of shot snatching to a very minimum!
High Quality Components
The SmartPLT is made of high value components and uses a robust housing, made of aluminum. No moving parts are used which can reduce the lifetime. All parts of the target are constructed, developed and assembled in Germany. We
want the best and most compact / robust target, therefore the quality is rated very high.
Extensibility
The target has an extension port, it can deliver data to components like an external light. In the future a couple of extension devices are planned. Stay curious on what’s coming up. If you like to be kept “up to date” about our
planning’s and new devices you can subscribe our newsletter.
Upgradability
We continuously improve the software for our targets. You can easily upgrade your target by using the free basic software which is delivered with the target.
Instant On
The SmartPLTs performance is uncompromisingly optimized for performance. Not only the shots are processed in a incredible speed. Also the startup time of the SmartPLT is absolutely amazing. This comes especially into play in events.
If necessary you can act freely and restart the complete shooting range within a couple seconds. Even you are using 100 SmartPLTs in you range!
This helps you massively in the rough environment of large events where you
perhaps have to reposition targets during the competition.
Ultra High Precision
The SmartPLT is designed and equipped with a special camera system, which was specifically developed for the target in order to fulfill perfectly the demands of a serious and Olympic standard precision target. No cheap standard
cameras are used to achieve a low price. It took a lot of effort to build the best system and not chasing the fastest development time or lowest costs. In combination with the highest sophisticated processing algorithms this
leads to amazing performance from this target.

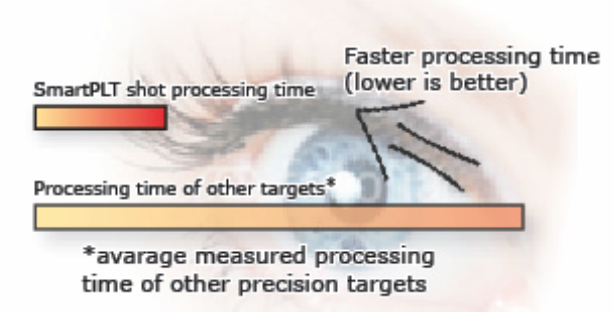

Ultra Fast Processing
The SmartPLT has a unique processing system which was only and specifically developed for this target. The whole chain of components is excessively tuned to fit perfectly and give ultra quick performance. It reaches an incredibly
fast processing speed and instant feedback of the target to detected shot. Faster than a blink of your eyes.
100Mbit LAN Connection
The target has an Ethernet Port (10/100Mbit) and can be directly connected to a LAN Network. Using standard LAN components like switches, hubs, etc., you can connect easily 100 Targets to only one computer which collects the results
from all the targets! One 100Mbit network is more than enough for handling over 100 targets.
No Computer Required
The SmartPLT can be used as a Hit & Miss Target AND even as a precision target without the need for a computer system. The result calculation is done by a revolutionary processing system directly in the target itself
Incredible Strong Software
The target comes with free and easy to use software (SmartPLT Live Edition One), compatible with every computer running Microsoft Windows (minimum Windows 7). With our software you can use your target and collect your
specific results and timing. If you need more powerful software, like for managing your own events or collect data from more than one athlete and you need strong analyzing capabilities, you can use the software
SmartPLT LIVE Edition Competition.
SD-Card Slot for Result Collection
Sometimes you just want to shoot on a target without having a connection to a network or with a PC, so to say: “out of the box”, “in the woods” or any “field of play”. With the SmartPLT you can! The Smart PLT has a
SD-Card slot. If you insert a SD-Card the target, it automatically collects and saves all results on the card. Later you can read out all your shooting series with a PC and analyze or archive your results and timings.
100% UIPM COMPLIANT
The SmartPLT is compatible to the UIPM LaserCode standard of 2015 as well as the UIPM requirements for Class A Events. This was proven and testified in the UIPM Homologation process in december of 2015. Hence the SmartPLT
can be used in all official and unofficial events!
Shotfreeze Technology
Thanks to the built in ShotFreeze technology, the target has a very high performance on snatched shots which leads to repeatable results, even of “in motion” fired shots. The ShotFreeze technology is an own built architectural
approach to minimize the influence of shot snatching to a very minimum!
High Quality Components
The SmartPLT is made of high value components and uses a robust housing, made of aluminum. No moving parts are used which can reduce the lifetime. All parts of the target are constructed, developed and assembled in
Germany. We want the best and most compact / robust target, therefore the quality is rated very high.
Extensibility
The target has an extension port, it can deliver data to components like an external light. In the future a couple of extension devices are planned. Stay curious on what’s coming up. If you like to be kept “up to date”
about our planning’s and new devices you can subscribe our newsletter.
Upgradability
We continuously improve the software for our targets. You can easily upgrade your target by using the free basic software which is delivered with the target.
Instant On
The SmartPLTs performance is uncompromisingly optimized for performance. Also the startup time is reduced to an absolute minium ! This leads to plug the target in and shoot – no long setup or anything else is required.
If you plug the target into a network the startup takes a little bit longer in order to register the network connection correctly. Anyway the startup time is incredible fast…a whole shooting range with an arbitrary
number of targets is ready in less then 10 seconds for shooting. Even you are using 100 SmartPLTs.
Ultra High Precision
The SmartPLT is designed and equipped with a special camera system, which was specifically developed for the target in order to fulfill perfectly the demands of a serious and Olympic standard precision target. No cheap
standard cameras are used to achieve a low price. It took a lot of effort to build the best system and not chasing the fastest development time or lowest costs. In combination with the highest sophisticated processing
algorithms this leads to amazing performance from this target.
Ultra Fast Processing
The SmartPLT has a unique processing system which was only and specifically developed for this target. The whole chain of components is excessively tuned to fit perfectly and give ultra quick performance. It reaches
an incredibly fast processing speed and instant feedback of the target to detected shot. Faster than a blink of your eyes.
Direct LAN Network Connection
(10/100Mbit)
The target has an Ethernet Port (10/100Mbit) and can be directly connected to a LAN Network. Using standard LAN components like switches, hubs, etc., you can connect easily 100 Targets to only one computer which collects
the results from all the targets! One 100Mbit network is more than enough for handling over 100 targets.
General
| Product Name | SmartPLT (Model: SPLT-2018C) |
| EAN / GTIN (Global Product Code) | 4260586620016 |
| Status | In Production |
| Certificates | CE |
| Power Supply | 12V / min. 800mA |
| Connection | 1x Ethernet (RJ45) 1x Extention Port (RJ45) 1x Power Supply (DC-Jack 5.5/2.1mm) 1x SD-Card Slot |
Dimensions
| Housing Dimensions | 213x190x140 mm (H x W x D) |
| Retail Package Dimensions | 210x277x180mm (H x W x D) |
| Weight: | approx 1,5 kg |
Working Conditions
| Max ambient light: | 50 klx |
| Max direct light | 50 klx |
| Min peak laser power | 2 mW |
| Shooting Distance | 1 - 20m |
| IP-Classification | IP42 (DIN EN 60529) |
Delivery Contents
| Retail (Carton Box) | - SmartPLT Precision Laser Target - 12V Power Supply Adapter - 15m Cat5 Cable - Short User Manual |
| Bulk (Packaging as agreed) | - SmartPLT Precision Laser Target |
The SmartPLT is compatible to the following Equipment:
Extention port:
- ALS ShotLightV2
- ALS ShotLight Timing
- ALS Simpower Adapter (For connection of Lamps of the Legacy Company Simpower)
-
ALS Navistreet Adapter (For connection of Lamps of the Legagy Company Navistreet)
Cat.5 Cable with RJ45 Jacks are needed (most common cable in whole world), max 5m Cable length
Power Connection:
-
ALS 12V/1A Power Adapter
- ALS Wiring Box
- ALS 3-Point Power Cable
- Any 3rd Party Power Supply with 12V DC and min 800mA (No AC-Current) with a 5.5/2.1mm power Jack
Network Connection:
-
ALS Wiring Box
- Any standart LAN network equipment (switches, computers etc.)
Cat.5 Cable with RJ45 Jacks are needed (most common cable in whole world)
The the full potential out of the SmartPLT by unsing the Software. Also our Software is made in Germany and build inhouse by ALS itself.
ALS Live
Edition: One
This edition is the easiest Version and is made for only one target at a time. So its the perfect solution for home training or other single lane configurations.
ALS Live
Edition: Competition
The Edition Competition will rocket your possibilities. Manage shooting rages from small to huge ranges for world class events.
ALS Live App
With our app you can collect your results right on your phone and view your shooting live at the shootingrange or in your home training studio.
Our SmartPLT was used during many first class events in the past years.
Please visit our References page for a list of the hugest events.
Here you have a couple of impressions:
Downloads - Software
SmartPLT Live One:
Can be downloaded in the myALS user area. You have to register your SmartPLT with the Serial number to your account then you can access
the Software downloads.
SmartPLT Live Competition:
If you have a license you can downlad the installation file in the myALS Section. The Licensing
is done completely over the myALS Account.
ALS Live App
Android: You can find the ALS Live Software directly in the Android
App Store.
Apple iOS: Actually there is no support for Apple iPhones. Pleaase feel free to contact us if you want to ask if and when a iOS App will be available
Manual
Quick Start Guide
Can be downloaded in the myALS user area. You have to register your SmartPLT with the Serial number to your account then you can access the quick start guide downloads.
Manual
Can
be downloaded in the myALS user area. You have to register your SmartPLT with the Serial number to your account then you can access the latest manual downloads.
